VISU chemical cabinet

• •
• •
• •
• •

• VISULab collection offers the air-conditioned chemical cabinets for the storage of acids, bases and toxins.
• Cabinets are made of P5-class chipboard with a high-pressure laminate-coated surface that can withstand high loads and humidity. The base is made of powder coated steel. The cabinet has stainless steel hinges.
• For Standard solutions we have selected high-quality and most commonly used options in terms of dimensions and materials.
• Custom solutions are always tailored to the customer´s needs.

Feel free to contact us, we will design suitable solutions together!

Standard

Description	Product code and standard dimensions width-depth-height [mm]*	Standard widths w [mm]

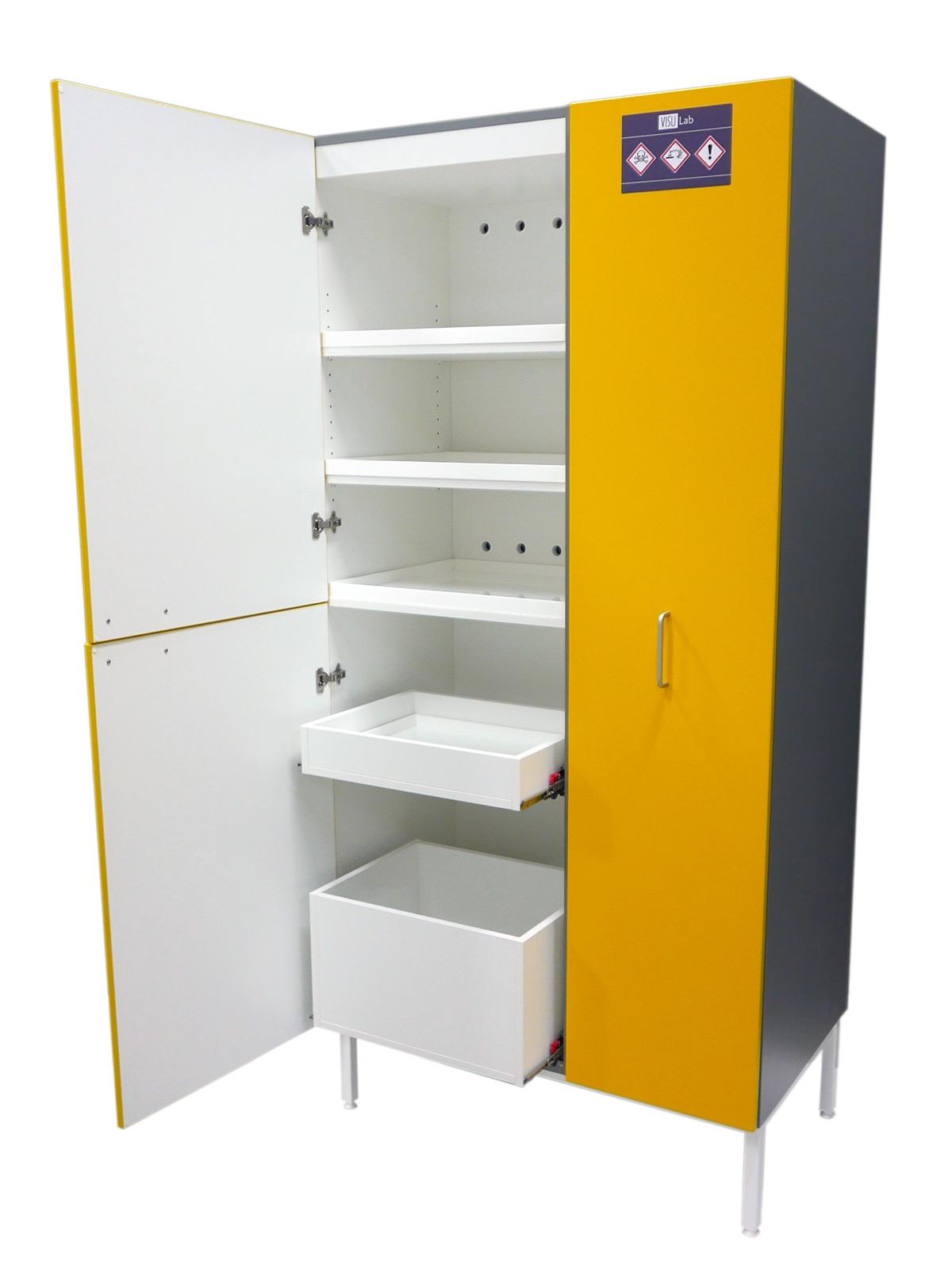

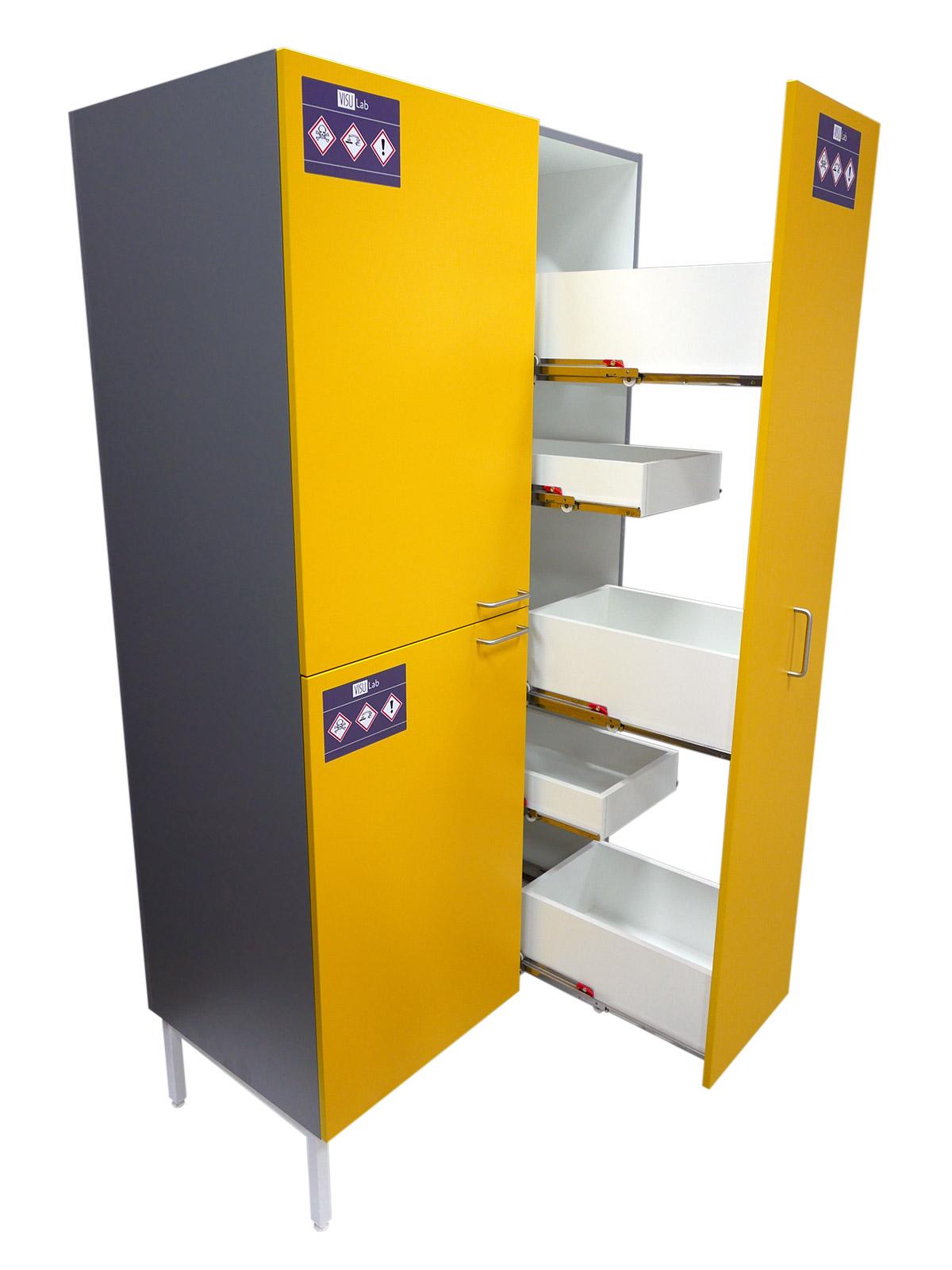

Chemical cabinet with pull-out door The top, bottom and middle drawers open with the door, leaving two inner drawers in between. The drawers have rails made of stainless steel and polypropylene containment sumps.	K15IV-w-580-1850	300 and 400
1-door narrow chemical cabinet 5 shelves, polypropylene containment sump on the bottom.	K10IV-w-580-1850	400, 500 and 600
1-door narrow chemical cabinet with framed glass door	K10IVL-w-580-1850	400, 500 and 600

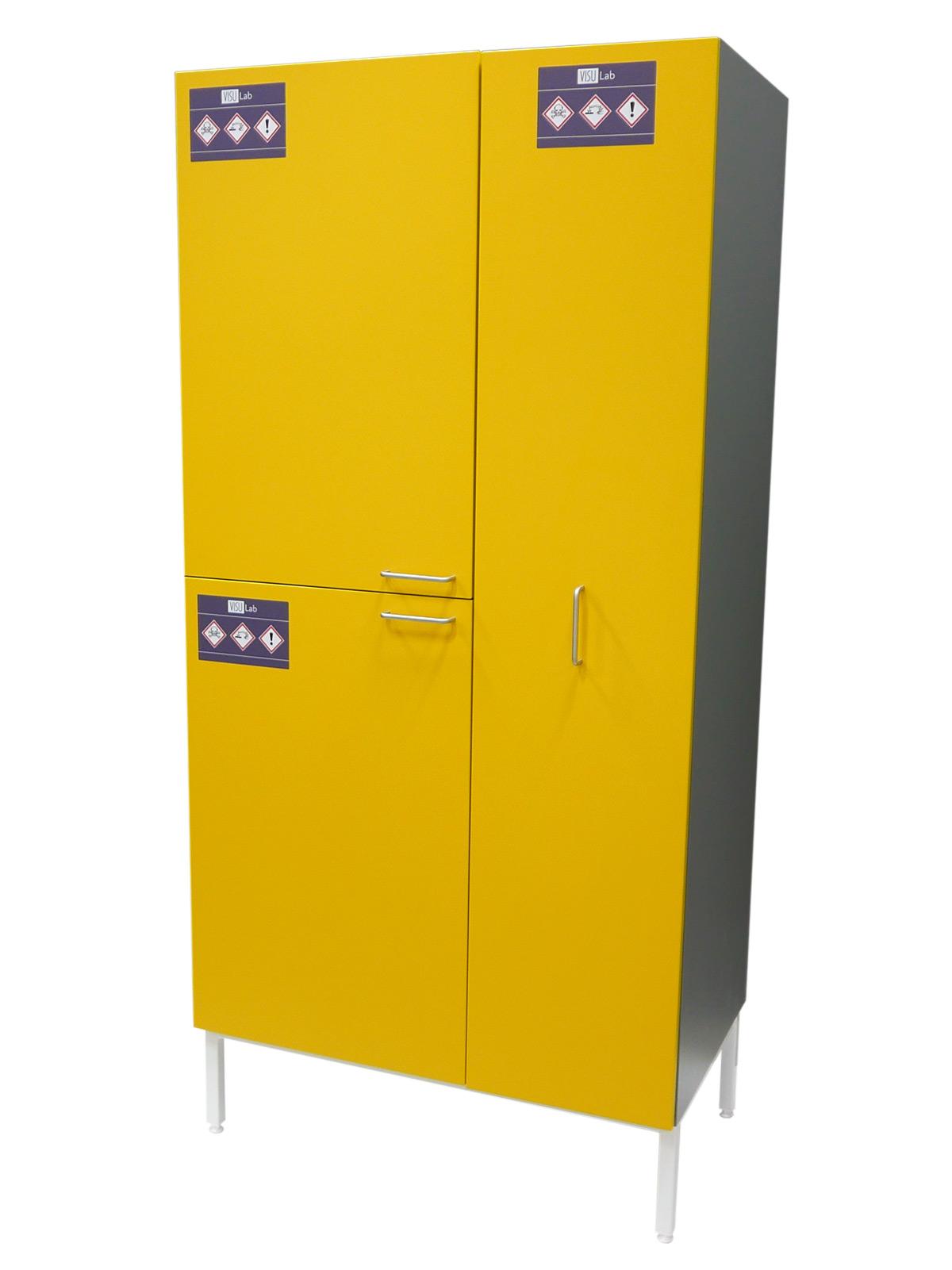

A narrow chemical cabinet with two doors on top of each other The cabinet has 5 shelves, intermediate background and base. A polypropylene containment sump at the bottom of both sections. Common ventilation connection in the ceiling of the cabinet.	K21IV-w-580-1850	400, 500 and 600
A narrow chemical cabinet with two farmed glass doors on top of each other	K21IVL-w-580-1850	400, 500 and 600
Chemical cabinet with double doors 5 shelves, polypropylene containment sump on the bottom.	K20IV-w-580-1850	800, 1000, (1200 with partition wall)
Chemical cabinet with framed glass double doors	K20IVL-w-580-1850	800, 1000, (1200 with partition wall)
4-door chemical cabinet The cabinet has 5 shelves, intermediate background, side and base. A polypropylene containment sump at the bottom of each section. Common ventilation connection in the ceiling of the cabinet.	K40IV-w-580-1850	800, 1000, 1200
4-door chemical cabinet with framed glass doors	K40IVL-w-580-1850	800, 1000, 1200

Custom

In addition to Standard solutions, we also implement furniture according to customer´s wishes. In Custom solutions, dimensions, materials and equipment are completely up to the customer.

Feel free to contact our experts and we will find suitable solutions together!

Features

Installation	On a steel plinth. Must be attached also to the wall.
Materials	According to Standard collection or alternatively customized according to customer´s wishes (Custom).
Contents	As a standard solution, 5 adjustable shelves with plastic binding brackets. Raised background on the shelves. Stainless steel hinges on the doors. Polypropylene containment sump on the bottom. Ventilation connection ø 125 mm. Equipped with the necessary warning signs.
According to order	Also available as lockable. As an alternative, pull-out inner drawers instead of shelves, for which polypropylene containment sumps are available. The cabinet can also be devided into sections for storing different chemicals.
