A wall workbench is best suited against a wall or along a corridor line.
The installation unit at the back of the workbench provides a fixed pathway for building systems and utilities.
There are no vertical legs at the front edge of the workbench, which improves ergonomics, especially for seated work.
Under-desk cabinets are attached to the desk frame, leaving the floor space free, and allowing the cabinet to be repositioned under the work surface. The cabinet can be removed and relocated entirely under another work surface.
We have selected high-quality, commonly used dimensions and materials for standard solutions.
The custom solutions are always tailored to meet the specific needs of the client.
Feel free to contact us, and our experts will be happy to help you choose the right solutions.

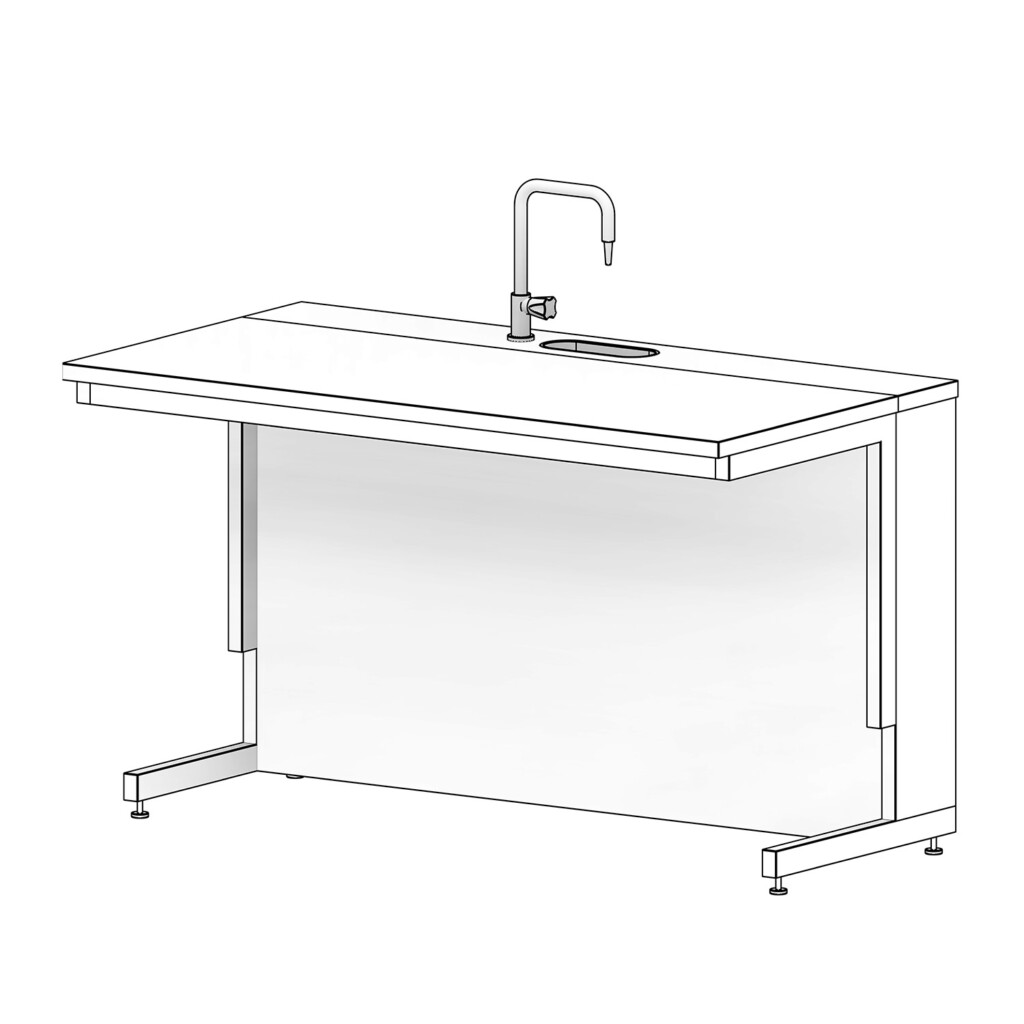

RS-T2 +sinkRS-S-YH-T2RS-S-Y-T2Examples of configurations
Standard
Description
Product code
Standard dimensions [mm]
Additional information
Width
Depth
Height of the worktop
Total height
Wall workbench
RS-T2
1,200 / 1,500 / 1,800 / 2,000
800*
manual adjustment 750 – 900
900
without upper cabinets
Wall workbench
RS-S-T2
1,200 / 1,500 / 1,800 / 2,000
800*
electric adjustment 750 – 1000
900 / 1,000
without upper cabinets
—
Wall workbench, with frame for upper cabinets
RS-RYK1-T2
1,200 / 1,500 / 1,800 / 2,000
800*
manual adjustment 750 – 900
1,400 + upper cabinet
incl. the frame for upper cabinets (upper cabinets to be selected separately)
Wall workbench, with frame for upper cabinets
RS-S-RYK1-T2
1,200 / 1,500 / 1,800 / 2,000
800*
electric adjustment 750 – 1000
1,400 + upper cabinet
incl. the frame for upper cabinets (upper cabinets to be selected separately)
—

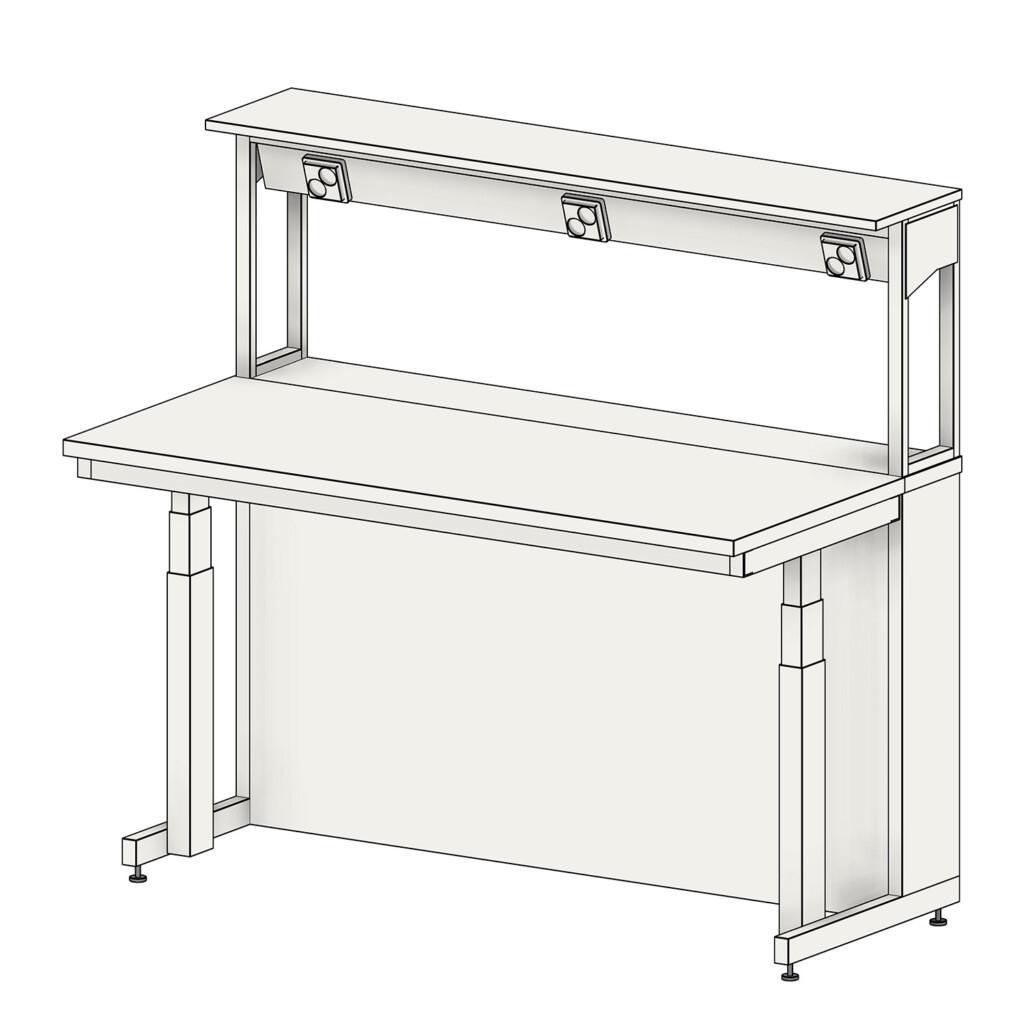

Wall workbench, with top shelf
RS-YH-T2
1,200 / 1,500 / 1,800 / 2,000
800*
manual adjustment 750 – 900
1,418
incl. top shelf
Wall workbench, with top shelf
RS-S-YH-T2
1,200 / 1,500 / 1,800 / 2,000
800*
electric adjustment 750 – 1000
1,418
incl. top shelf
—

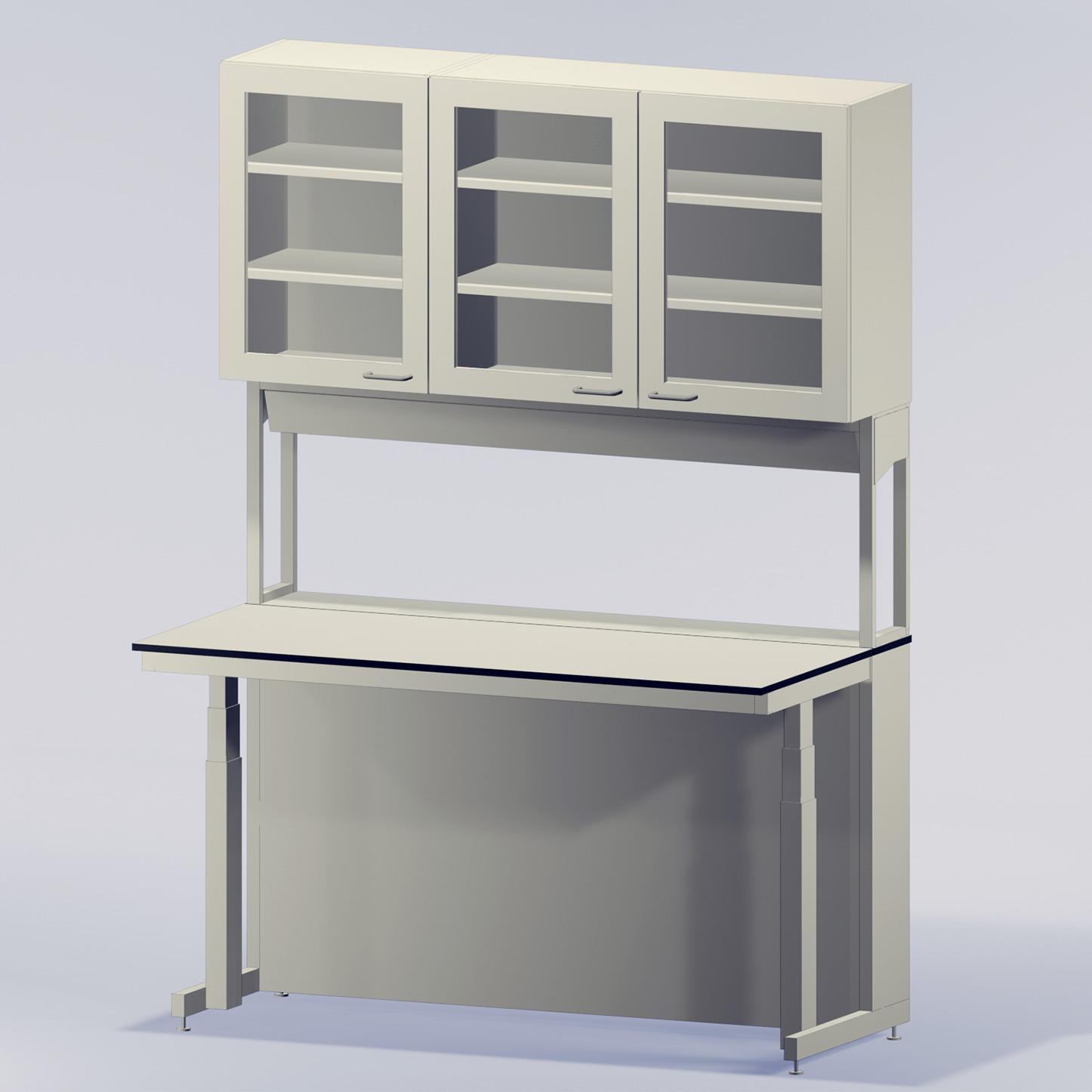

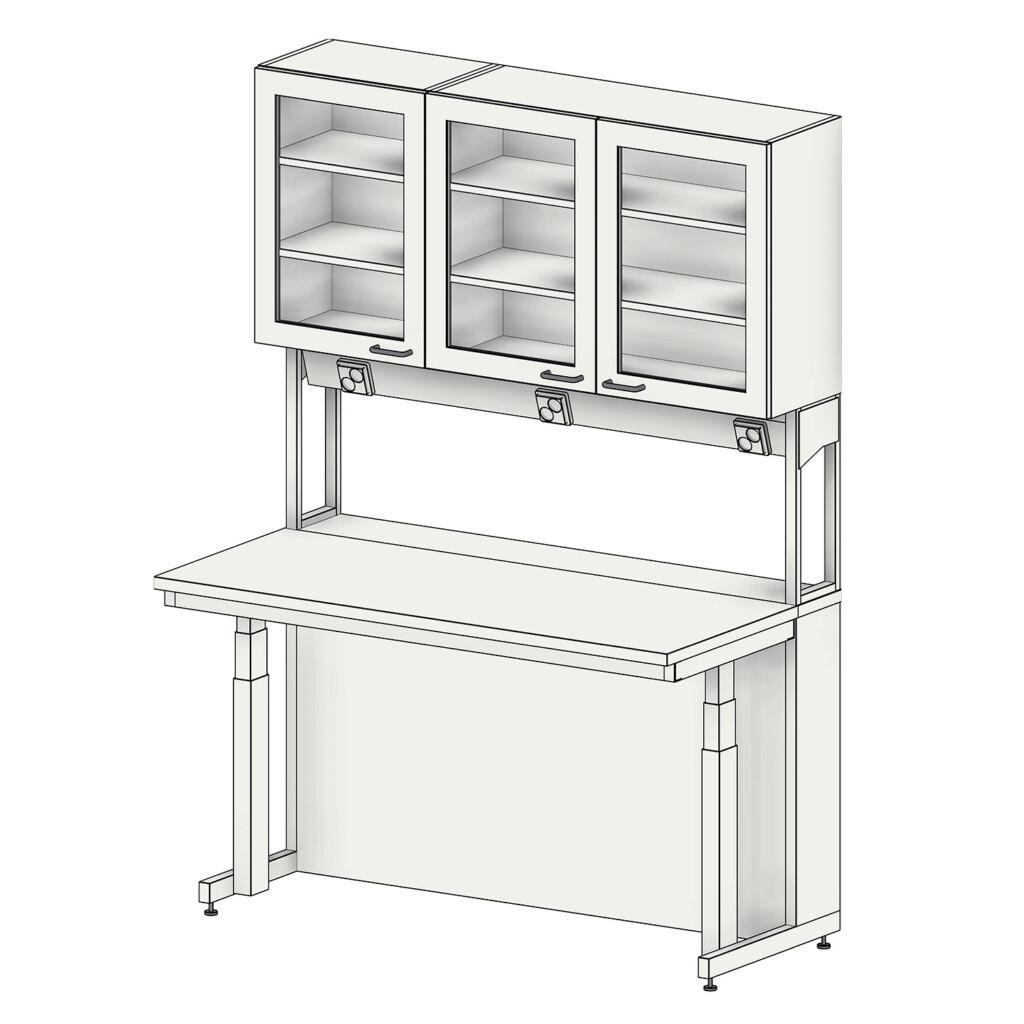

Wall workbench, with upper cabinets
RS-Y-T2
1,200 / 1,500 / 1,800 / 2,000
800*
manual adjustment 750 – 900
2,100
incl. upper cabinets with framed glass doors
Wall workbench, with upper cabinets
RS-S-Y-T2
1,200 / 1,500 / 1,800 / 2,000
800*
electric adjustment 750 – 1,000
2,100
incl. upper cabinets with framed glass doors
*worktop depth 600 + installation unit depth 200
Custom
In addition to our standard models, we also manufacture workbenches according to client specifications. In the custom solutions, dimensions, materials, and features are entirely up to the client.
Feel free to ask our experts for more information, and let’s design the right solutions together!
Additional information
Installation mehod
Free-standing on the floor, adjustable pads as standard. Sink tables need to be mounted.
Materials
Worktop material is acid- and chemical-resistant solid laminate (T2). Other options also available; please read more on the Worktop Materials page. The frame is made of powder-coated steel to meet environmental requirements in laboratory.
An optional standard top shelf 18 mm P5 class chipboard with high-pressure laminate surface
Colour
Standard white, other colours on request
Load capacity
Manual height adjustment: Recommended load capacity is 200 kg per table, which typically provides sufficient rigidity considering sway and deflection of the surface. Maximum load capacity 400 kg per table; this value should not be exceeded. Higher load capacities also possible; please inquire of our experts for more information.
Electric height adjustment: 240 kg per table (2 electric legs). Higher load capacities are also possible; please inquire of our experts for more information.
Height adjustment
Manual adjustment: Stepless adjustment from 750 to 900 mm.
Electric adjustment: Stepless adjustment from 750 to 1000 mm (programmable), with 3 memory presets, soft start and stop. Standard desk with an anti-collision sensor
On request
Upper cabinets, electrical systems, lighting, and taps with sinks are designed and installed on request.
LED light strip (optional)
Neutral white 4,000 K, light output 1,080 lm/m, power consumption 9.0 W/m, CRI >80, IP66

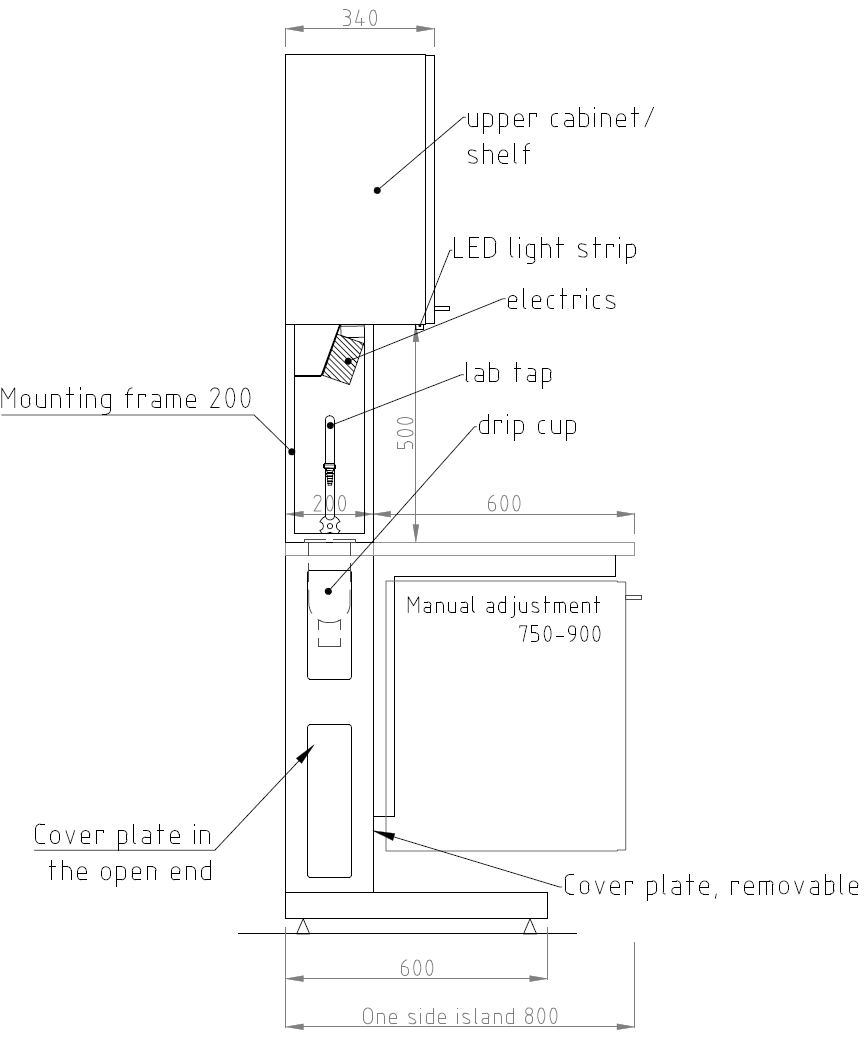

Sivuryhmä / Wall Workbench

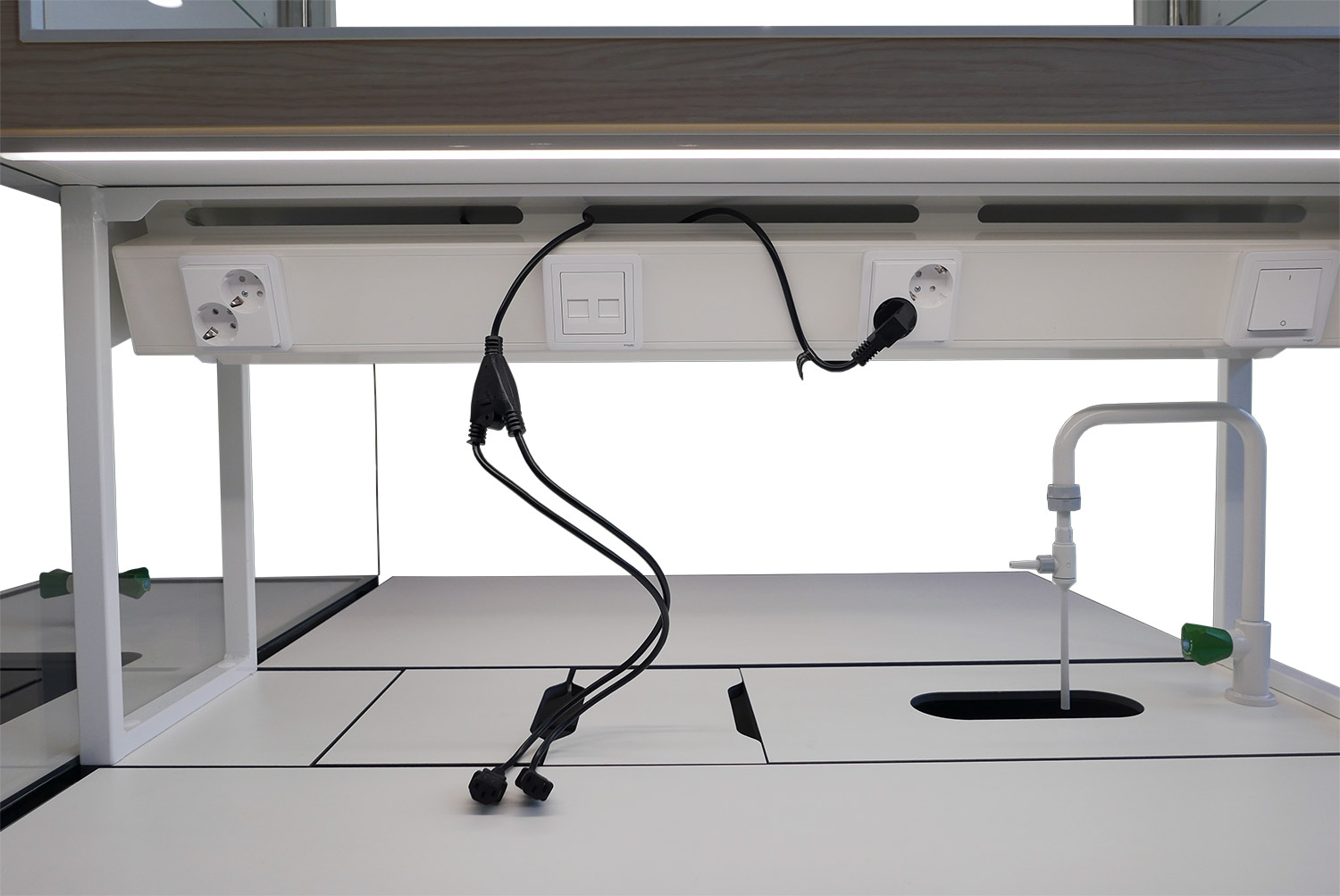

Johtopiilo / Concealed cable compartment
Feel free to contact us, and we will design suitable solutions together!
