A module is a standalone piece of furniture unit that can be pre-fitted with electrical wiring and lighting. It can be delivered to the site fully ready for use.
There is space behind the frame, allowing room for building services running along the wall.

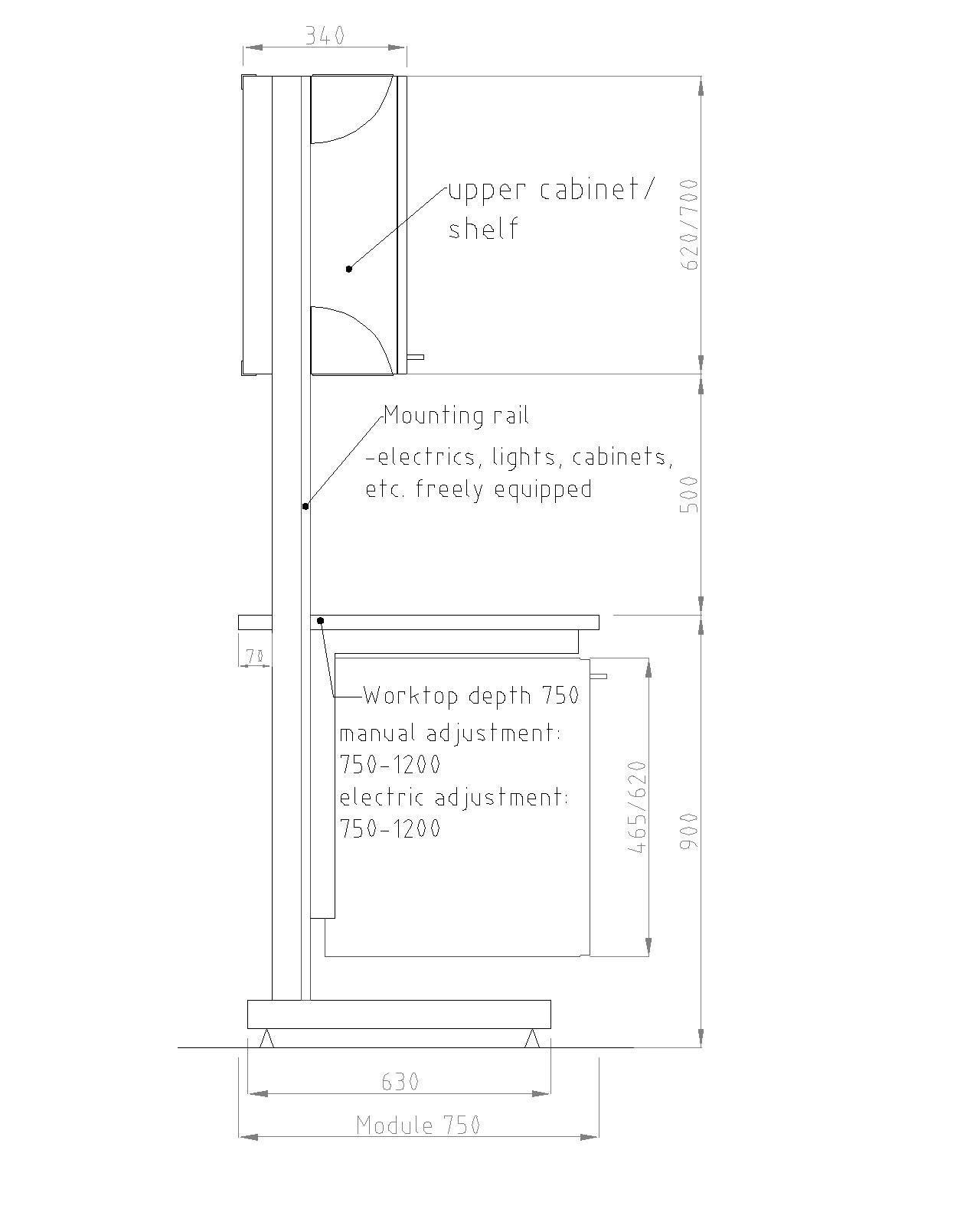

A worktop and upper cabinets are attached to a vertical rail. The VISU Deco mounting profile allows fully stepless height adjustment.
A continuous work surface spanning the full depth of the unit provides an optimal user experience.
There are no vertical legs at the front edge of the workbench, which improves ergonomics, especially for seated work.
Under-desk cabinets are attached to the table frame, leaving the floor space free and allowing the cabinet to be repositioned under the work surface. The cabinet can also be removed and relocated entirely under another work surface.
We have selected high-quality, commonly used dimensions and materials for our standard solutions.
The custom solutions are always tailored to meet the specific needs of the client.
RM-YH-T2RM-S-YH-T2RM-Y-T2Examples of configurations
Standard
Description
Product code
Standard dimensions [mm]
Additional information
Width
Depth
Worktop height
Total height
Module
RM-T2
900 / 1,200 / 1,500 / 1,800
750
manually adj. 750 – 1,200
2,100
without upper cabinets (to be selected separately)
Module, electric height adj.
RM-S-T2
900 / 1,200 / 1,500 / 1,800
750
electrically adj. 750 – 1,200
2,100
without upper cabinets (to be selected separately)
Module with upper shelves
RM-YH-T2
900 / 1,200 / 1,500 / 1,800
750
manually adj. 750 – 1,200
2,100
incl. 3 pcs of height adj. upper shelves (with raised back edge)
Module, upper shelves, electric height adj.
RM-S-YH-T2
900 / 1,200 / 1,500 / 1,800
750
electrically adj. 750 – 1,200
2,100
incl. 3 pcs of height adj. upper shelves (with raised back edge)
Module with upper cabinets
RM-Y-T2
900 / 1,200 / 1,500 / 1,800
750
manually adj. 750 – 1,200
2,100
incl. upper cabinets with framed glass doors
Module, upper cabinets, electric height adj.
RM-S-Y-T2
900 / 1,200 / 1,500 / 1,800
750
electrically adj. 750 – 1,200
2,100
incl. upper cabinets with framed glass doors
Custom
In addition to the standard models, we also manufacture workbenches according to client specifications. In the custom solutions, dimensions, materials, and features are entirely up to the client.
Feel free to ask our experts for more information, and let’s design the right solutions together!
Additional information
Installation mehod
Free-standing on the floor, adjustable pads as standard. Sink tables need to be mounted.
Materiaalit
Worktop material is acid- and chemical-resistant solid laminate (T2). Other options are also available; please read more on the Worktop Materials page. The frame is made of powder-coated steel to meet laboratory environmental requirements.
Upper shelves are P5 class chipboard with high-pressure laminate surface.
Colour
Standard white, other colours on request.
Load capacity
Manual height adjustment: Recommended load capacity 200 kg per table, which typically provides sufficient rigidity considering sway and deflection of the surface. Maximum load capacity 400 kg per table; this value should not be exceeded. Higher load capacities also possible; please inquire of our experts for more information.
Electric height adjustment: 240 kg per table (2 electric legs). Higher load capacities are also possible; please inquire of our experts for more information.
Electric height adjustment
With 3 memory locations. Soft start and stop. The table comes standard with a collision detection sensor.
On request
Upper cabinets, electrical systems, lighting, and taps with sinks are designed and installed as requested.
LED light strip (optional)
Neutral white 4,000 K, light output 1,080 lm/m, power consumption 9.0 W/m, CRI >80, IP66
Feel free to contact us, and we will design suitable solutions together!
