Island workbench

Download product card
  • •
  • •
  • •

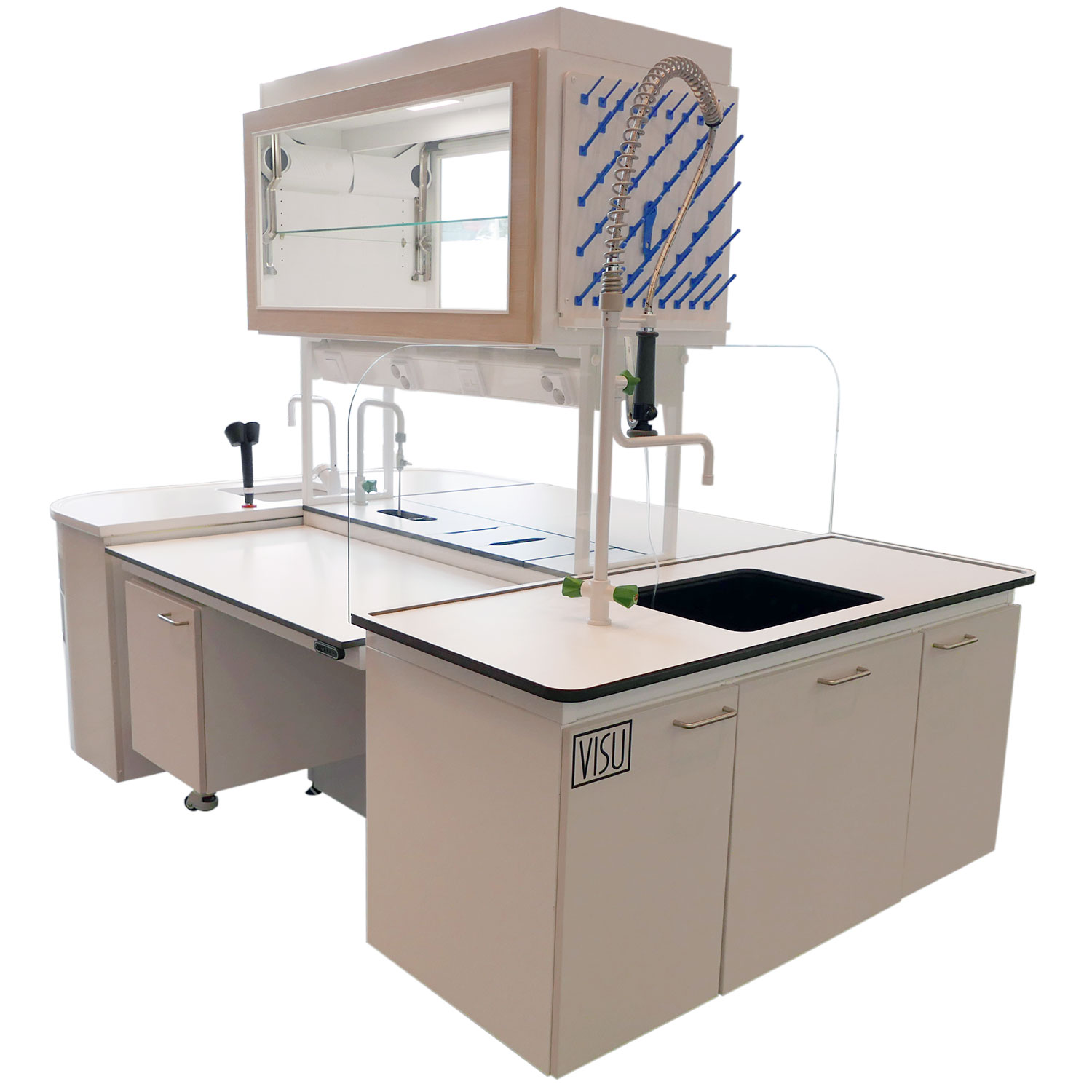

Keskiryhmän laboratoriokalusteet, piirroskuva / drawn image of lab island workbench

An island workbench maximizes efficient use of the laboratory’s central area.

  • An island workbench is the most versatile furniture solution in the VISULab range, as it can incorporate nearly all features of the collection.
  • The central installation unit provides a fixed pathway for building systems and utilities.
  • There are no vertical legs at the front edge of the workbench, which improves ergonomics, especially for seated work.
  • Under-desk cabinets are attached to the desk frame, leaving the floor space free, and allowing the cabinet to be repositioned under the work surface. The cabinet can be removed and relocated entirely under another work surface.
  • We have selected high-quality, commonly used dimensions and materials for our standard solutions.
  • Custom solutions are always tailored to meet the specific needs of the client.

Feel free to contact us, and our experts will be happy to help you choose the right solutions.

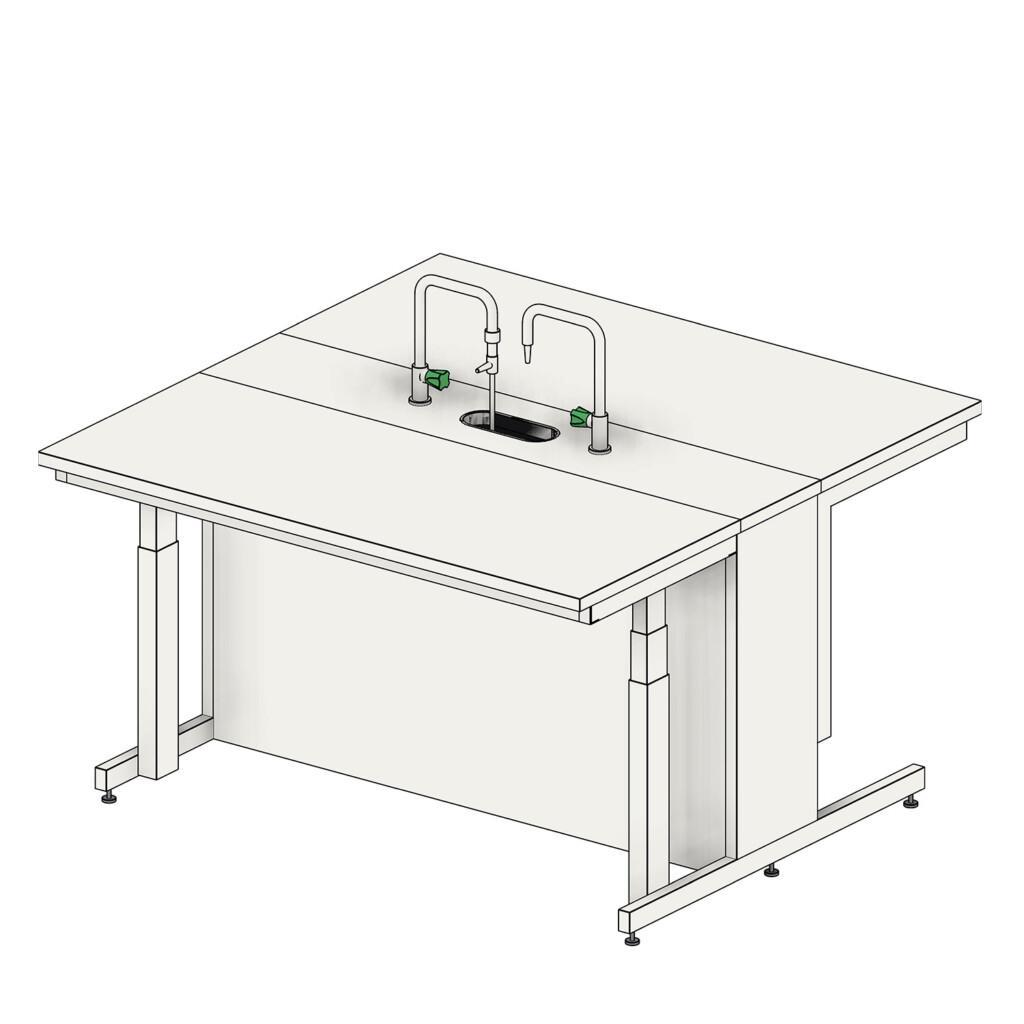

RK-S/M-T2 +sink

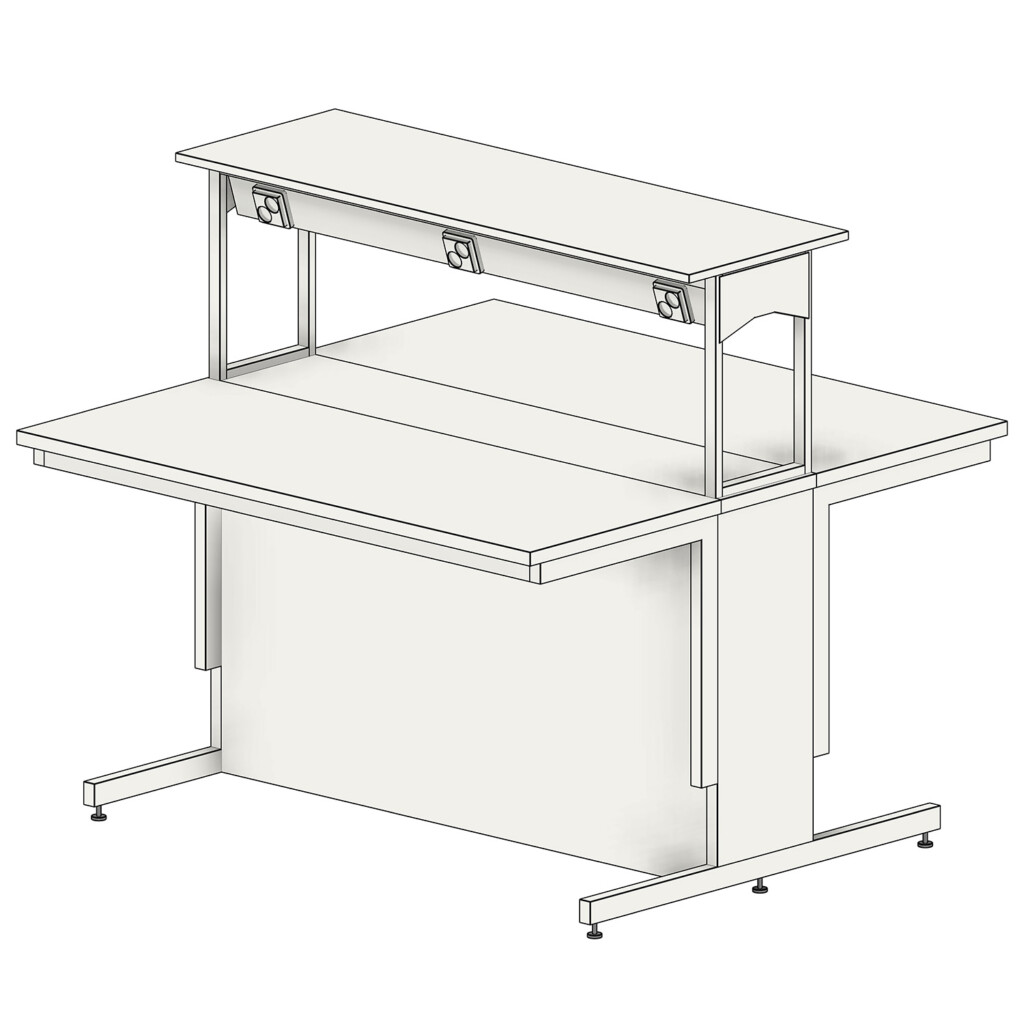

RK-YH-T2

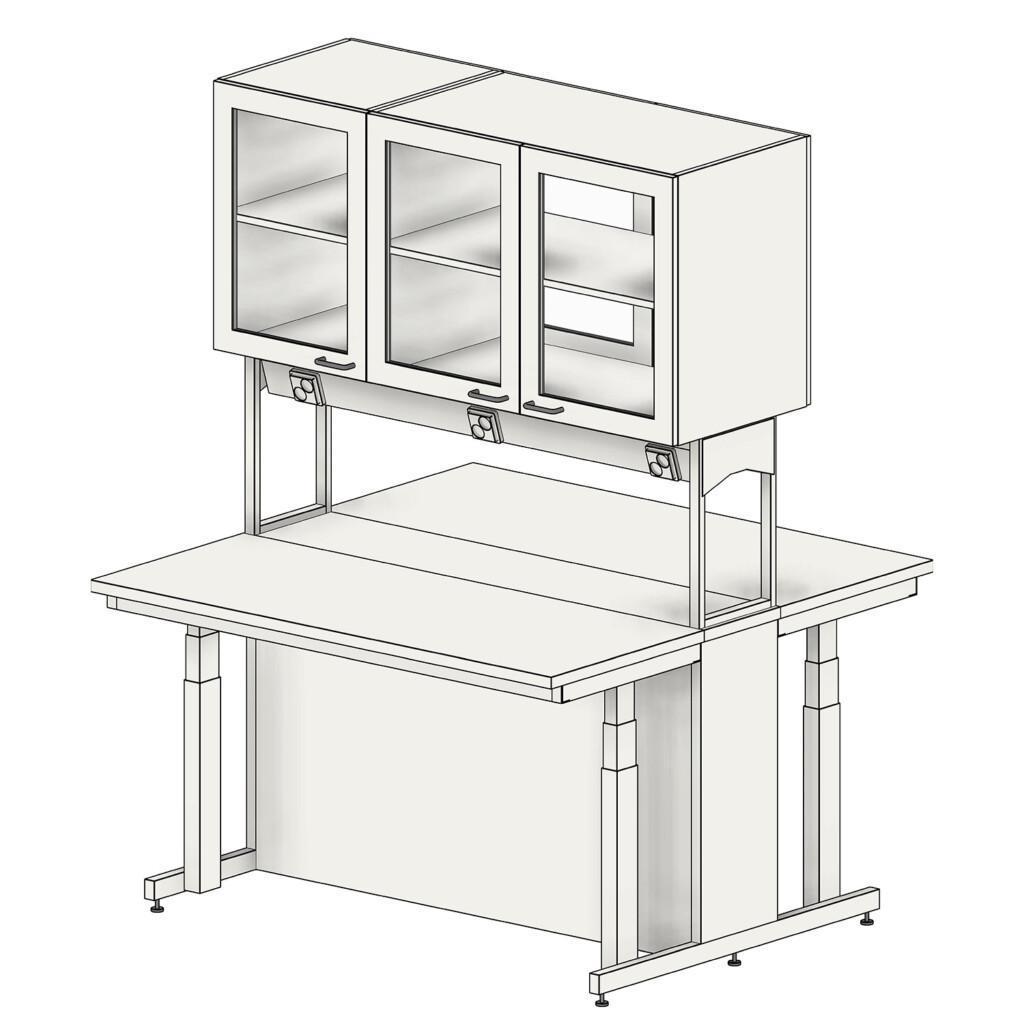

RK-S/S-Y-T2
Examples of configurations

Standard

DescriptionProduct codeStandard dimensions [mm]Worktop height adjustmentAdditional information
WidthDepthTotal height
Island workbenchRK-T21,200 / 1,500 / 1,800 / 2,0001500*900manualwithout upper cabinets
Island workbenchRK-S/M-T21,200 / 1,500 / 1,800 / 2,0001500*900 / 1,000electric/manual**without upper cabinets
Island workbenchRK-S/S-T21,200 / 1,500 / 1,800 / 2,0001500*900 / 1,000sähköwithout upper cabinets
—
Island workbench, with frame for upper cabinetsRK-RYK2-T21,200 / 1,500 / 1,800 / 2,0001,500*1,400 + upper cabinetmanualincl. the frame for upper cabinets (upper cabinets to be selected separately)
Island workbench, with frame for upper cabinetsRK-S/M-RYK2-T21,200 / 1,500 / 1,800 / 2,0001,500*1,400 + upper cabinetelectric/manual**incl. the frame for upper cabinets (upper cabinets to be selected separately)
Island workbench, with frame for upper cabinetsRK-S/S-RYK2-T21,200 / 1,500 / 1,800 / 2,0001,500*1,400 + upper cabinetelectricincl. the frame for upper cabinets (upper cabinets to be selected separately)
—
Island workbench, with top shelfRK-YH-T21,200 / 1,500 / 1,800 / 2,0001,500*1,418manualincl. top shelf
Island workbench, with top shelfRK-S/M-YH-T21,200 / 1,500 / 1,800 / 2,0001,500*1,418electric/manual**incl. top shelf
Island workbench, with top shelfRK-S/S-YH-T21,200 / 1,500 / 1,800 / 2,0001,500*1,418electricincl. top shelf
—
Island workbench, with upper cabinetsRK-Y-T211,200 / 1,500 / 1,800 / 2,0001,500*2,100manualincl. pass-through upper cabinets with framed glass doors
Island workbench, with upper cabinetsRK-S/M-Y-T21,200 / 1,500 / 1,800 / 2,0001,500*2,100electric/manual**incl. pass-through upper cabinets with framed glass doors
Island workbench, with upper cabinetsRK-S/S-Y-T21,200 / 1,500 / 1,800 / 2,0001,500*2,100electricincl. pass-through upper cabinets with framed glass doors
*worktop depth 600 + central installation unit depth 300, **one side electric height adjustment and the other side manual height adjustment

Custom

In addition to our standard models, we also manufacture workbenches according to client specifications. In custom solutions, dimensions, materials, and features are entirely up to the client.

Feel free to ask our experts for more information, and let’s design the right solutions together!

Additional information

Installation mehodFree-standing on the floor, adjustable pads as standard. Sink tables need to be mounted.
MaterialsWorktop material is acid- and chemical-resistant solid laminate (T2). Other options are also available; please read more on the Worktop Materials page. The frame is made of powder-coated steel to meet environmental requirements in laboratory

An optional standard top shelf 18 mm P5-class chipboard with high-pressure laminate surface
ColourStandard white, other colours on request
Load capacityManual height adjustment:
Recommended load capacity is 200 kg per table, which typically provides sufficient rigidity considering sway and deflection of the surface. Maximum load capacity 400 kg per table; this value should not be exceeded. Higher load capacities also possible; please inquire of our experts for more information.

Electric height adjustment:
240 kg per table (2 electric legs). Higher load capacities are also possible; please inquire of our experts for more information.
Height adjustmentManual adjustment: Stepless adjustment from 750 to 900 mm.

Electric adjustment: Stepless adjustment from 750 to 1000 mm (programmable), with 3 memory locations, soft start and stop. Standard desk with an anti-collision sensor
On requestUpper cabinets, electrical systems, lighting, and taps with sinks are designed and installed on request
LED light strip (optional)Neutral white 4,000 K, light output 1,080 lm/m, power consumption 9.0 W/m, CRI >80, IP66
