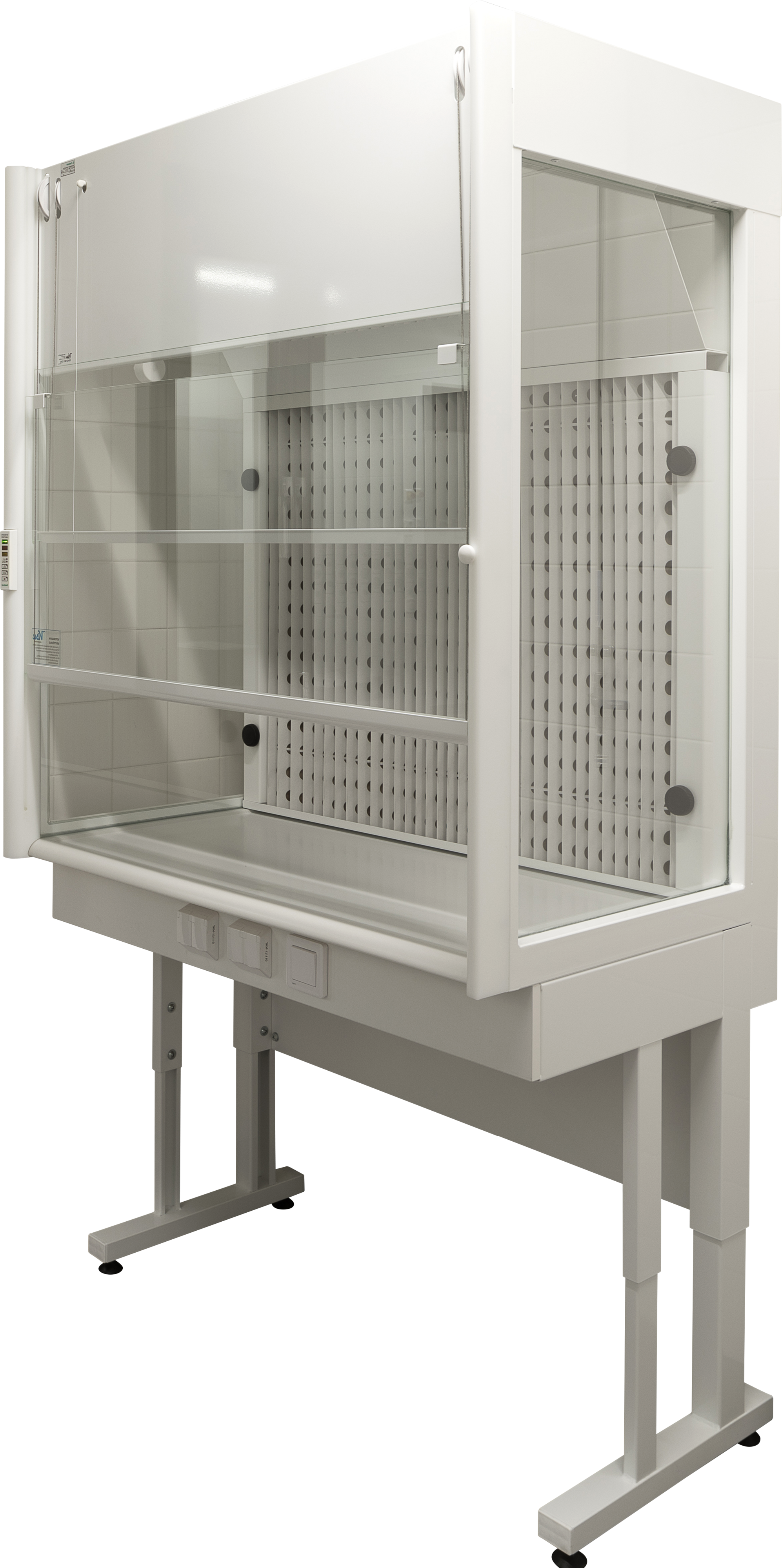

- Fume cupboard designed for painting, with an EX interior.
- The back wall is equipped with a replaceable painting filters.
- The worktop has a rotating painting base on it.
- The fume cupboard has an optimally designed front edge, continuous handle and side profiles to optimize air flow.
Product information
| Standard width | 900 mm |
| Worktop depth | 600 mm |
| Total depth | 725 mm |
| Total height | 1-part glass opened 2450 mm. With the sash lowered 2235 mm. |
| Worktop material | Acidproof steel. |
| Materials of sides and back wall | The side walls are powder-coated aluminum. The back wall has a replaceable painting filter. |
| Front wall | The glass hatch, made of laminated safety glass, is easy to clean. Also available with an ergonomic diagonal safety glass. |
| Height adjustment | Fixed 900mm. |
| Internal storage | Rotating painting base. |
| Sockets | When necessary. |
| Air conditioning | 0-1 IC switch or automatic IC control option. |
| Other additional properties | You can include under-desk furniture, connected to the fume hood’s ventilation, for the storage of paints etc. |
Additional technical information
The technical properties depend on the fume hood width.
| Standard widths, [mm] | 900 | |
| Air volume, [l/s] | 125 | The sash 300 mm open, 0.5 m/s inflow. |
| Standard lights, led W (lumen) | 10/(1040) | |
| Ventilation connection, [mm] | 200 |
