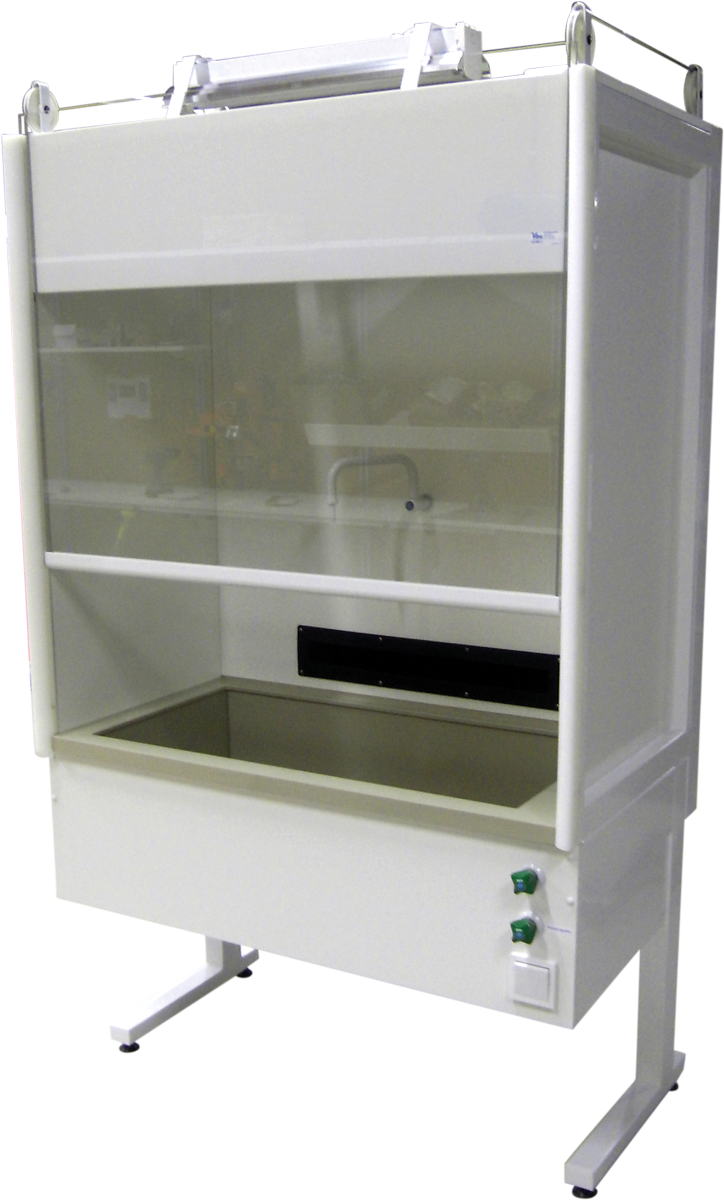

VISU ProMist

Fume cupboard with scrubber

VISU ProMist fume cupboard with scrubber is well suited for handling strong water-soluble acids such as perchloric acid. The scrubber flushes the exhaust air duct and the water used for washing is drained separately. This minimizes the transport of acids into the exhaust air duct of the property.

  • Fume cupboard contains a washing unit for the extraction duct, with a two-nozzle spray system and a pipe connection for the drain with a water trap.
  • The suction ducts are located both up and down.
  • Each fume cupboard is always equipped as requested by the customer. Our experts will be happy to help you choose the right solutions.

Product information

Dimensions and materials
Standard widths1200, 1500 and 1800 mm
Worktop depth600 and 800 mm
Total depthSingle sash 950 and 1150 mm, two-part sash 975 and 1175 mm.
Total heightSingle sash 2680 mm (possible to be limited), two-part sash 2465 mm (two-part sash without water separator 2320 mm).
Height adjustmentManual 750–900 mm.
Worktop materialPolypropylene, ceramic, acidproof steel.
Side wall materialsPolypropylene, compact laminate, clear polycarbonate, laminated glass.
Back wall materialsPolypropylene, high-pressure laminate.
Front wallVertical laminated glass.
FramePowder coated steel.
DuctworkPolyethylene PE-HD.
According to the order
Internal storage4 pcs of back-wall rods made of acid-proof steel (Reservation for the back-wall rods is included automatically). Perforated shelves made of acid-proof steel, available also with height adjustment.
SocketsIP21 or IP44, as ordered, 4 pcs as standard, emergency stop.
Air flow control0-1 control switch with indicator light, reservation for automatic air flow control.
The most common equipmentSinks, taps, under-desk storage, under-desk safety cabinets, a knee-recess, a residual current circuit breaker.
Other additional propertiesFor example: EX-protection, waste disposal system, a hotplate, HEPA filter, hand-hatches, pass-through hatches, accessories in side panels, external lining for fume cupboard´s back side. Ask more from our experts.

Technical information

The technical properties depend on the fume cupboard width.

Standard widths, [mm]120015001800
Internal work area widths, [mm]1128-11341428-14341728-1734Depending on side materials.
Air volume, [l/s]170215260Sash 300 mm open, 0,5 m/s inflow.
External fluorescent lamp, [W]367272
Ventilation connection, [mm]200200250

Brochures and files

Our brochure is currently being updated, and will be added here as soon as possible. Before that, feel free to contact our experts for further information.

Selection of suitable fume cupboard

See the table below to select different properties. We always equip the fume cupboards according to customers’ needs. Feel free to contact us, and we will design suitable solutions together!

pdf

VISU Pro Fume Cupboard selection table – EN

Delivery and installation

Fume cupboards are delivered, if so agreed, installed in place, ready to be connected to building services systems. A fume cupboard must be connected to a separate exhaust air duct. The water supply, drainage, gas and electricity work must be performed by professionals. An automatic air flow alarm and control system can also be included in the delivery.

Feel free to contact us,
and we will design suitable solutions together!
