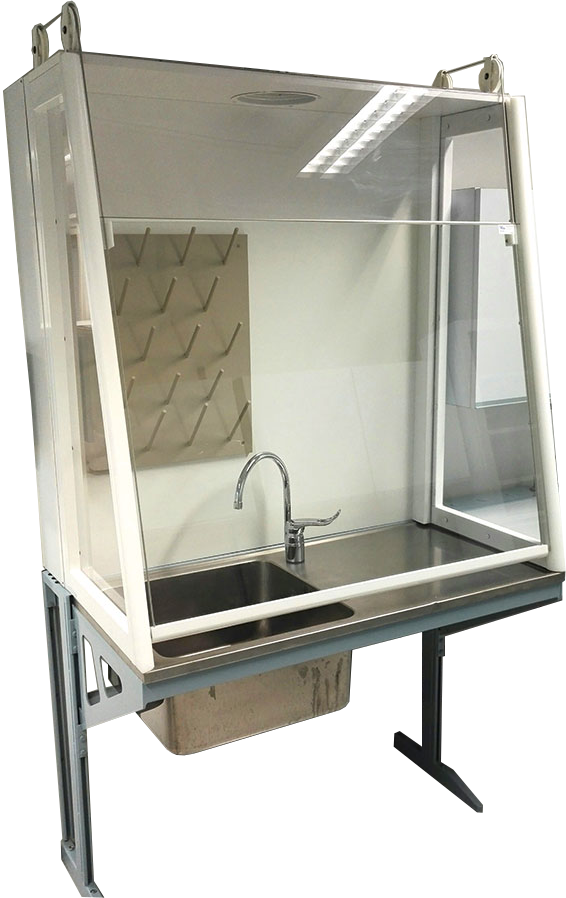

VISU Top safety cabinet can be placed on a table.
- Owing to the transparent sides and front glass, no separate light is required.
- The sash can be adjusted to the desired height, with the suction working efficiently and any splashes remain inside. The sash is easy to operate owing to the counterweight mechanism.
- The fume hood is always equipped as requested by the customer. Our experts will be happy to help you choose the right solutions.
|Standard widths||900, 1200 and 1500 mm|
|Worktop depth||550, 650 and 750 mm|
|Total depth||630, 730 and 830 mm|
|Total height||1776 mm measured from the top of the base with the glass open.|
|Side materials||Clear polycarbonate.|
|Front wall||Vertical or diagonal clear polycarbonate, polycarbonate.|
|Back wall materials||High-pressure laminate.|
|Frame||Powder coated steel / high-pressure laminate-coated, humidity-resistant chipboard, also available in metal only.|
|By order||Stand rods, 4 pcs, made of acidproof steel; perforated plate shelves made of acidproof steel, also available with height adjustment, drying rack.|
Additional technical information
The technical properties depend on the hood width.
|Standard widths, [mm]||900||1200||1500|
|Interior width, [mm]||820||1120||1420||Depending on side materials.|
|Air volume, [l/s]||103||140||178||The sash 250mm open, 0.5 m/s flow.|
|Air conditioning pipe connection, [mm]||160||200||250|
Delivery and installation
Safety cabinets are delivered, if so agreed, installed in place, ready to be connected to building technology systems. A safety cabinet must be connected to a separate exhaust air duct. Any water supply, drainage, gas and electricity work must be performed by professionals.
