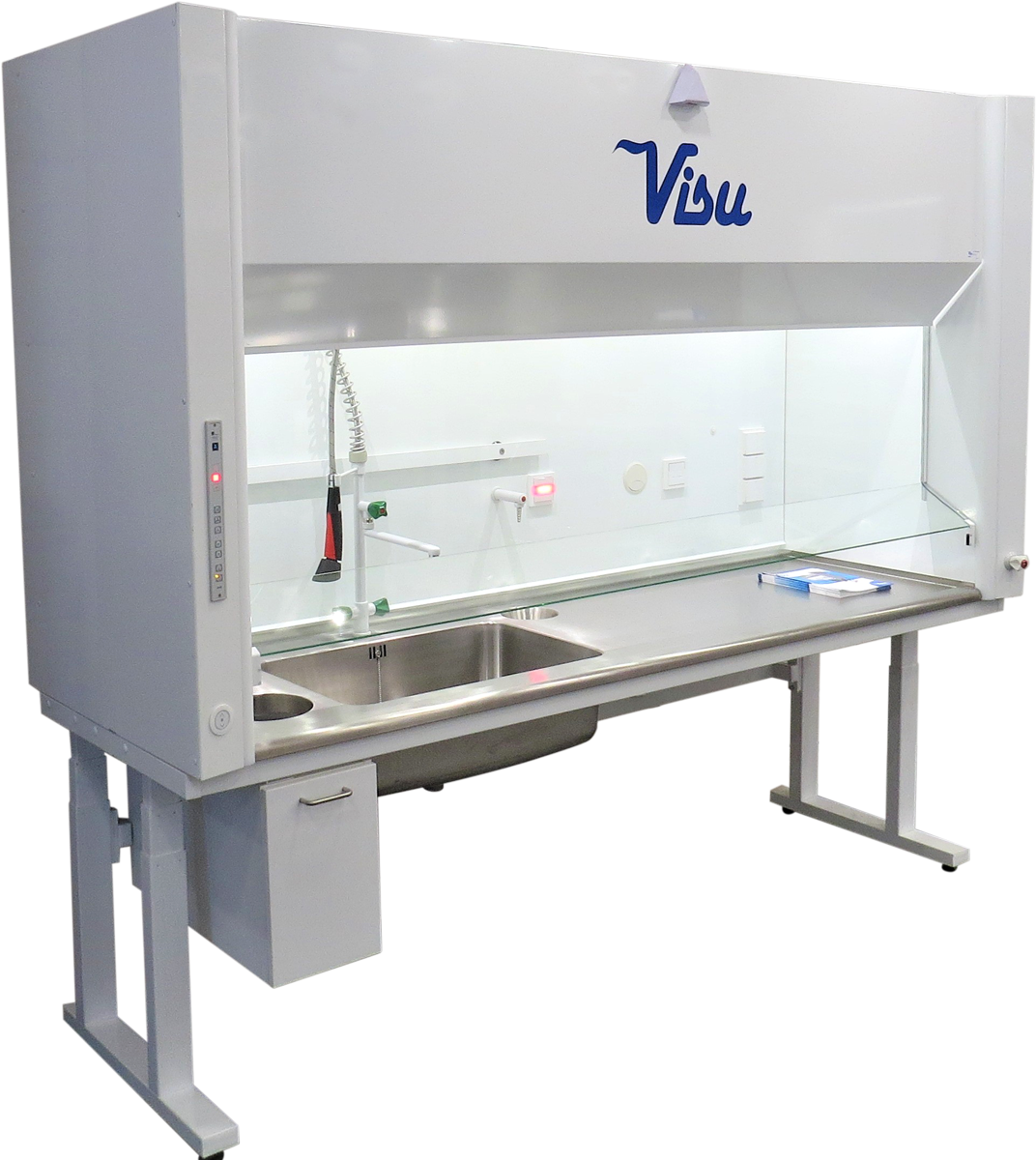

VISU ProFocus fume cupboard is designed for demanding professional use and precise work, such as in pathology laboratory.
- For precise work – Electrically and manually operated folded front glass enables and effortless, safe and optimal environment for presice work.
- Easy to modify – ProFocus fume cupboards are always tailored and equipped according to the customer´s needs.
- High quality – Materials for professional use and finished design, almost maintenance-free.
- Ergonomic – Clear and optimal design of details. Working position is ergonomic thanks to electric height adjustment and full-width knee recess.
- Safe – The air suction is on the full width of the fume cupboard on upper and lower edge of the inner back wall. Structures are easy to clean.
- Ecological – Designed and manufactured responsibly in Finland, made to last for decades.
VISU fume cupboards are always equipped according to the customer´s needs. Feel free to contact us and we will design suitable solutions together!
Product information
| Dimensions and materials | |
| Standard widths | 1200, 1500, 1800, 2100 and 2400 mm |
| Worktop depth | 700 mm |
| Total depth | 830 mm |
| Total height | 2180-2430 mm with electrical height adjustment, 2330 mm when the height of the worktop is 900 mm. |
| Worktop height adjustment | Manual 750–900 mm, electrical adjustment 750–1000 mm. |
| Worktop material | Stainless or acidproof steel, ceramic (maximum width 1800 mm), polypropylene. |
| Side wall materials | Powder coated aluminum, compact laminate, polypropylene, stainless or acidproof steel. |
| Back wall materials | Powder coated aluminum, polypropylene. |
| Front wall | Folded laminated glass with electric height adjustment, EN 14175. Electric and manual use, motion sensor with automatic closing mechanism, safety sensor with automatic stop function. |
| Frame | Powder coated steel. |
| Ductwork | High-pressure laminate + back wall material. |
| Standards | On request according to EN 14175-2 : 2003 fume cupboards, with the exception of individual customer-specific requirements. |
| Registered community design | The product has been granted registered community design (EUIPO). |
| According to the order | |
| Internal storage | 4 pcs of back-wall rods made of acid-proof steel (Reservation for the back-wall rods is included automatically). Perforated shelves made of powder-coated stainless steel, available also with height adjustment. |
| Sockets | IP21 or IP44, according to order, 4 pcs as standard, emergency stop. |
| Air flow control | 0-1 control switch with indicator light, reservation for automatic air flow control. |
| The most common equipment | Sinks, taps, under-desk storage, under-desk safety cabinets, a knee-recess, a residual current circuit breaker. |
| Other additional properties | For example: EX-protection, ESD-classification, a hotplate, HEPA filter, hand-hatches, pass-through hatches, accessories in side panels. Ask more from our experts. |
Technical information
The technical properties depend on the fume cupboard width.
| Standard widths, [mm] | 1200 | 1500 | 1800 | 2100 | 2400 | Other dimensions are also possible. |
| Internal work area widths, [mm] | 930 | 1230 | 1430 | 1730 | 2030 | |
| Air volume, [l/s] | 140 | 185 | 215 | 260 | 305 | Sash opened 300 mm, 0.5 m/s inflow, pressure drop 100 Pa. |
| Standard lights, led W (lumen) | 15(1425) | 19(2028) | 19(2028) | According to need | According to need | Enhanced lighting is available for all widths if required. |
| Ventilation connection, [mm] | 200 | 200 | 250 | 2×200 (cc 900 mm) | 2×200 (cc 1050 mm) |
Brochures and files
VISU ProFocus fume cupboard – EN
Lataa: visu-profocus-en.pdf
Selection of suitable fume hood
See the table below to select different properties. We always equip the fume cupboards according to customers’ needs. Feel free to contact us, and we will design suitable solutions together!
VISU Pro Fume Cupboard selection table
Delivery and installation
Fume cupboards are delivered, if so agreed, installed in place, ready to be connected to building services systems. A fume cupboard must be connected to a separate exhaust air duct. The water supply, drainage, gas and electricity work must be performed by professionals. An automatic air flow alarm and control system can also be included in the delivery.
