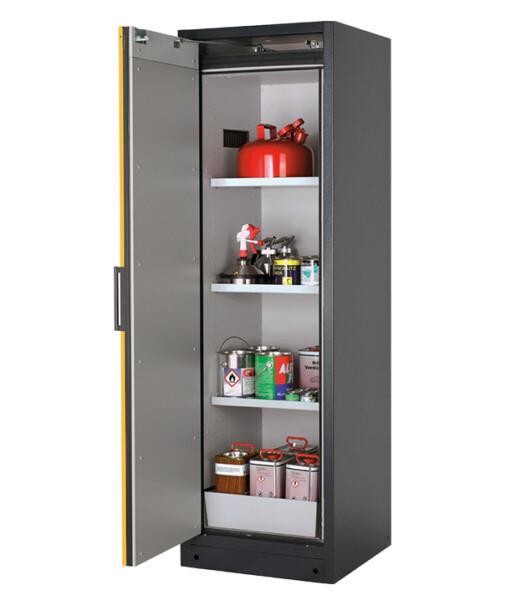

Asecos fire safety cabinet with three shelves and one perforated insert with a bottom collecting sump
For the safe storage of flammable liquids near the point of use
Free-standing design with a transport base
Type-tested according to EN 14470-1, fire resistance 90 minutes
Complies with DIN EN 16121/16122 furniture standards and EU occupational safety requirements (GS-certified, CE-marked)
Product information
ASECOS
EAQH-600
External dimensions [W x D x H]
599 x 615 x 1,953 mm
Internal dimensions [W x D x H]
450 x 522 x 1,647
Material
Powder-coated sheet steel
Colour
Body anthracite grey (RAL 7016) Wing door warning yellow (RAL 1004) Interior fittings light grey (RAL 7035)
Weight
313.5 kg
Interior fittings

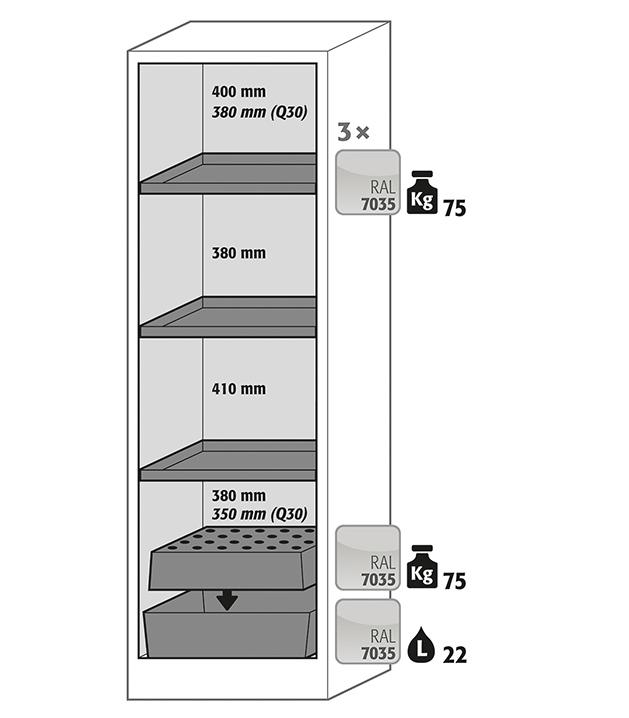

3 × tray shelf, load capacity 75 kg each 1 x perforated insert, load capacity 75 kg 1 x bottom collecting sump, capacity 22 litres
Maximum load capacity
600 kg
Ventilation
Integrated air ducts, connection to exhaust air system at the top (D75) Differential pressure (air change 10 times): 5 Pa Minimum exhaust air quantity 10 times: 4 m³/h
Installation method
Free-standing
Additional information
Wing door with hinges on the left Cylinder lock with lock status indicator Integrated adjustable feet and transport base with a removable front plinth panel Plinth inner width 526 mm, inner height 90 mm
