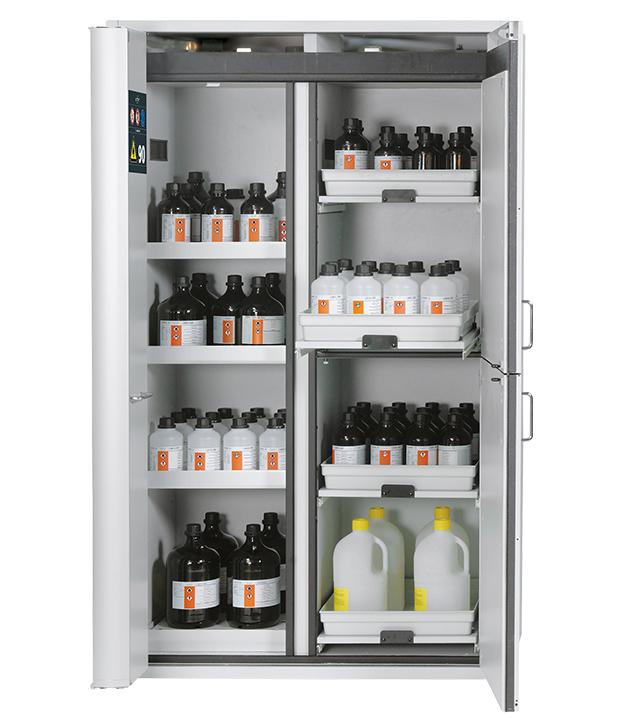

- The Asecos combination cabinet features two vertically separated compartments, allowing for the storage of flammable liquids and aggressive chemicals in the same cabinet.
- The fire-resistant cabinet on the left is equipped with a folding door, three shelves, and one perforated insert with a bottom collecting sump.
- The two-compartment cabinet on the right has individual wing doors for each compartment, each fitted with two shelves. The compartments are designed for storing aggressive, non-flammable materials, for example, acids and alkalis.
- A door stop mechanism improves safety by controlling the opening of the folding and wing doors.
- Type-tested according to EN 14470-1, fire resistance 90 minutes
- Complies with DIN EN 16121/16122 furniture standards and EU occupational safety requirements (GS-certified, CE-marked)
Product information
| ASECOS | EAK-1200 |
|---|---|
| External dimensions [W x D x H] | 1,197 x 615 x 1,953 mm |
| Internal dimensions [W x D x H] | Left: 450 x 522 x 1,742 mm Top right: 491 x 542 x 862 mm Bottom right: 491 x 542 x 862 mm |
| Material | Powder-coated sheet steel |
| Colour | Frame light grey (RAL 7035) Wing doors + folding door light grey (RAL 7035) Interior fittings light grey (RAL 7035) |
| Weight | 541 kg |

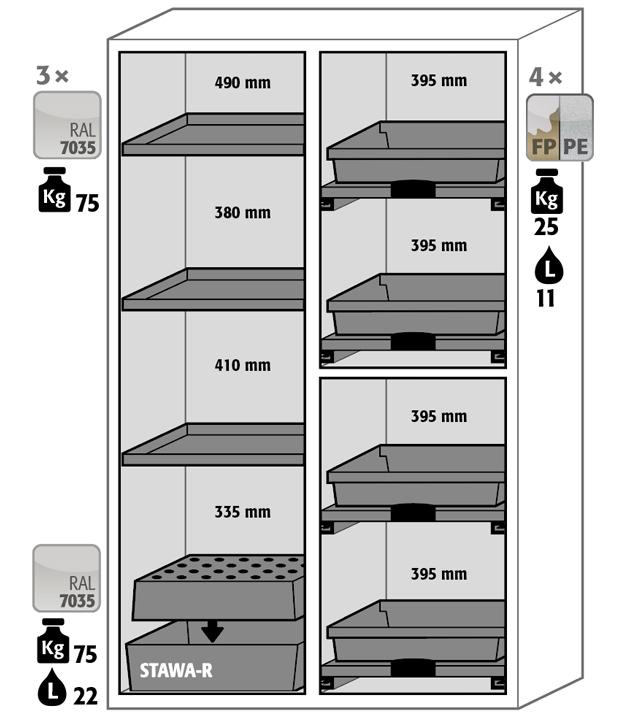

| Interior fittings | Left (fire-resistant cabinet, folding door): 3 x shelf, load capacity 75 kg each 1 x perforated insert, load capacity 75 kg 1 x bottom collecting sump, capacity 22 litres Right (two-compartment cabinet, wing doors): 4 x pull-out shelf, load capacity 25 kg each (melamine / PP) 4 x plastic spill trays, volume 11 litres each |
| Maximum load capacity | 600 kg |
| Ventilation | Integrated air ducts, connection (D75) to an exhaust air system at the top Differential pressure (air change 10 times): 5 Pa Differential pressure (air change 30 times): 28 Pa Minimum exhaust air quantity (air change 10 times): 9 m³/h Recommended exhaust air quantity (air change 30 times): 29 m³/h |
| Installation method | Free-standing |
| Additional information | Vertical fire-resistant, air-tight diving wall Three-door configuration: 1 folding door (left), 2 wing doors (right) Cylinder lock on each door Integrated adjustable feet |
