Asecos fire safety cabinet with four pull-out drawers
For the safe storage of flammable liquids near the point of use
Free-standing design with a transport base
Type-tested according to EN 14470-1, fire resistance 90 minutes
Complies with DIN EN 16121/16122 furniture standards and EU occupational safety requirements (GS-certified, CE-marked)
Product information
ASECOS
EAQL-1200
External dimensions [W x D x H]
1,193 x 615 x 1,953 mm
Internal dimensions [W x D x H]
1,050 x 522 x 1,647
Material
Powder-coated sheet steel
Colour
Body anthracite grey (RAL 7016) Wing door warning yellow (RAL 1004) Interior fittings light grey (RAL 7035)
Weight
505 kg
Interior fittings

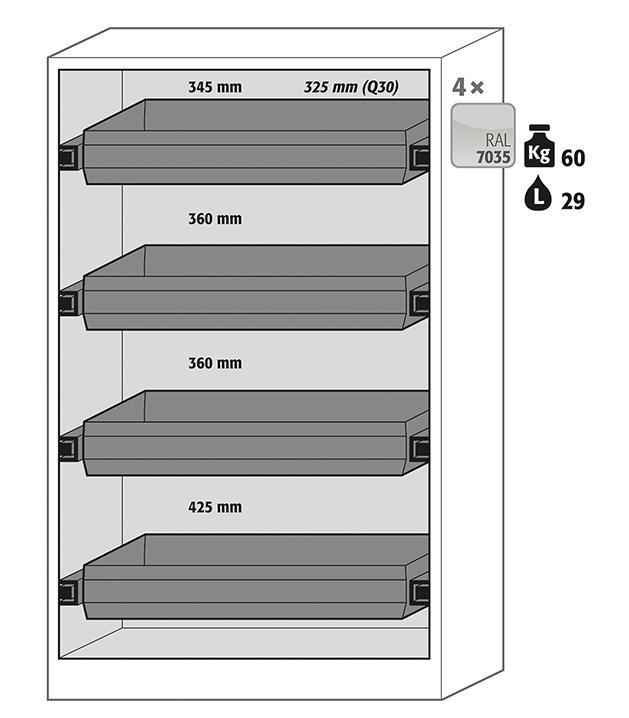

Four pull-out drawers, load capacity 60 kg, and capacity 29 litres each
Maximum load capacity
600 kg
Ventilation
Integrated air ducts, connection (D75) to an exhaust air system at the top Differential pressure (air change 10 times): 5 Pa Minimum exhaust air quantity 10 times: 9 m³/h
Installation method
Free-standing, with plinth
Additional information
Two wing doors Cylinder locks with lock status indicators Integrated adjustable feet and transport base with a removable front plinth panel Plinth inner width 1,120 mm, inner height 90 mm
